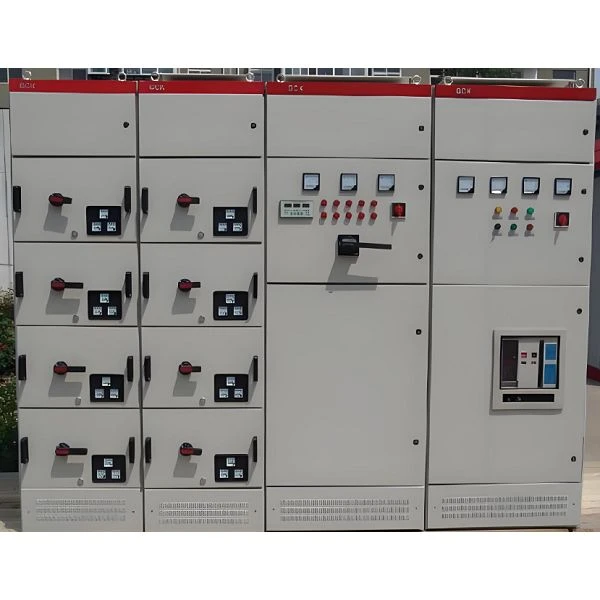

Ƙarƙashin Ƙarƙashin Wutar Lantarki {{0}

Ƙwararren Ƙarƙashin Ƙarƙashin Ƙarƙashin Ƙarƙashin Ƙarƙashin Ƙarƙashin Ƙarƙashin Ƙarƙashin Ƙarƙashin Ƙarƙashin Ƙarƙashin Ƙarƙashin Ƙarƙashin Ƙarƙashin Ƙarƙashin Ƙarƙashin Ƙarƙashin Ƙarƙashin Ƙarƙashin Ƙarƙashin Ƙarƙashin Ƙarƙashin Ƙarƙashin Ƙarƙashin Ƙarƙashin Ƙarƙashin Ƙarƙashin Ƙarƙashin Ƙarƙashin Ƙarƙashin Ƙarƙashin Ƙarƙashin Ƙarƙashin Ƙarƙashin Ƙarƙashin Ƙarƙashin Ƙarƙashin Ƙarƙashin Ƙarƙashin Ƙarƙashin Ƙarfafa Ƙwararfafa Ƙwararrun Manufacturer

Muna ƙira da ƙera ƙananan ƙarancin wutar lantarki don masana'antun masana'antu, gine-ginen kasuwanci, ayyukan makamashi mai sabuntawa, da masana'antun kayan aikin OEM. Daga ƙirar injiniya da ƙirƙira taswirar bas zuwa taro, gwaji na yau da kullun, da Gwajin Karɓar Masana'antu (FAT), muna ba da ingantattun hanyoyin sauya kayan aiki waɗanda aka gina zuwa IEC 61439 da ƙa'idodin ingancin ƙasa.

Siga

An ƙididdigewa a halin yanzu	630 A, 1250 A, 1600 A, 2000 A, 2500 A, 3150 A, 250A,
Ƙimar Wutar Lantarki	220V, 380V, 400V, 6600V, 10000V, 13800V, 15000V,
Kayan abu	Bakin Karfe
Girman	1800
Yawanci	50/60 Hz

Aikace-aikace

Cibiyoyin Bayanai & Ofishin Jakadancin -Mahimman Kayayyaki:Babban allon canza kayan abinci, Tier III/IV dual{0}} saitin rarraba wutar lantarki, haɗin canja wuri ta atomatik (ATS), da saka idanu akan wutar lantarki.

Masana'antu & Masana'antu Shuka:Babban allon rarrabawa (MDBs), Cibiyoyin Kula da Motoci (MCC) don ci gaba da sarrafa aiki mai nauyi, fatunan kewayawa na VFD, da kuma rarrabawar ƙasa{0}.

Sabunta Makamashi & Adana Baturi (BESS):Solar PV inverter AC mixer switchgear, wind turbine tower grid, da babban{0}}grid tsarin ma'ajiyar makamashin batir na yanzu{1}}allon sauya sheka.

Mai, Gas & Kemikal Tace:Harshen harshen wuta{0} da baka -arshin sauyawa mai juriya, nauyi{2}} MCCs don mahalli masu fashewa, da sinadarai{3}}mai jure foda-mai rufin rabe-rabe.

Kayayyakin Kasuwanci & Jama'a:Asibitoci, manyan hasumiya na ofisoshi-, wuraren cin kasuwa, tashoshin famfo na ruwa/sharar gida, da hanyoyin sadarwa na tashar jirgin sama.

Intelligent Low-Voltage Cabinet (iLV Cabinet)

Zaɓuɓɓukan al'ada

Rabuwar Ciki (Kimanin Sirri):Rabuwar cikin gida mai iya daidaitawa daga Form 1 har zuwa Form 4b (kowace IEC 61439) don ware sandunan bas, sassan aiki, da tashoshi na waje.

Tsarin Busbar:Shigar bus ɗin sama ko ƙasa; high - jan karfe (bare, tin{1}plated, ko silver-plated) ko busbars na aluminium masu daraja har zuwa 6300A.

Tsarin & Shiga:Kafaffen, toshe{0}, ko cikakken cirewa (zazzagewa) mai watsewar kewayawa da saitunan guga na MCC; gaba{1}}shiga ko baya{2}}ƙirar hanyar shiga.

Kariyar ƙulli:Na cikin gida (IP30, IP31, IP42, IP54 / NEMA 1, 12) da kuma yanayin waje{6}}abubuwan shaida (IP55, IP65 / NEMA 3R, 4, 4X) tare da zaɓuɓɓukan sarrafa zafi.

Mita & Gudanar da Wuta:Haɗin mitar wutar lantarki na dijital, masu nazarin makamashi da yawa, na'urori masu lura da zafi, da Modbus/Profibus/IEC 61850 hanyoyin sadarwa.

Fasalolin Fasaha

Kariyar Laifin Arc

An ƙera shi tare da ingantattun sifofi da hanyoyin kariya na baka na zaɓi don inganta amincin ma'aikaci da rage lalacewar kayan aiki.

Babban -Tsarin Busbar Mai Haɓakawa

Madaidaicin mashin ɗin jan karfe ko aluminum yana tabbatar da ƙarancin juriya, tsayayyen rarrabawa, da ingantaccen aiki na dogon lokaci-.

Rabuwar Ciki Mai sassauƙa

Yana goyan bayan Form 1 zuwa Form 4b daidaitawa daidai da IEC 61439 don ingantaccen aminci da sauƙin kulawa.

Kula da Wutar Lantarki na hankali

Mai jituwa tare da mita masu aiki da yawa, watsa kariya, da ka'idojin sadarwa kamar Modbus da IEC 61850 don sa ido na gaske{1}}lokaci.

Ƙarfin Ƙarfafawa

01/

Gudanarwar Busbar CNC:CNC busbar lankwasa, naushi, da injunan sassaske suna isar da madaidaicin milita akan sandunan tagulla har zuwa 12mm x 120mm.

02/

Sleeving Mota ta atomatik:Zafi{0}}ƙasa bututu da kayan aikin dala/azurfa don babban shiri na haɗin gwiwa.

03/

Ƙarfin Taro:Multi{0}} wiring na layi da tashoshi na haɗin kai masu goyan bayan samarwa sama da 150 ƙananan ƙarancin wutar lantarki{2} a kowane wata.

04/

Ƙirƙirar Ƙwararren Ƙwararren Ƙwaƙwalwa:Laser yankan ± 0.05mm haƙuri) da CNC latsa birki lankwasawa don 2.0mm-3.0mm galvanized karfe ko aluminum{3}} Tushen tsarin firam mai rufi.

Tsarin Masana'antu

Zana Injiniya & Amincewa:Ƙirƙirar CAD na zane-zanen layi ɗaya - (SLD), shimfidar majalissar 3D, zanen ɗagawa, da zane-zane don alamar abokin ciniki{2}.

Motar Bus & Ƙirƙirar Firam:CNC naushi da lankwasawa na tsarin bayanan martaba da manyan / rarraba basbar jan karfe.

Tsararraki & Haɗawa:Tsarin injina, duba juzu'i na tsari, da murfin foda (kauri 80-120 µm).

Shigar da bangaren:Hawan ACBs, MCCBs, masu tuntuɓar juna, CTs/PTs, da madaidaitan manyan mashaya bus ɗin tagulla.

Waya ta biyu & Keɓewa:Yankewar waya ta atomatik, Laser{0}} bugu da bugu na hannu, da sarrafa kayan aiki don sarrafawa da kewayar kariya.

Kula da inganci

Duban Abu mai shigowa (IQC)

Gwajin da'a akan sandunan jan karfe masu shigowa, tabbatar da ma'aunin karfe, da kuma duban sahihancin alama akan duk masu watsewar da'ira.

A cikin -Tsarin Ingantaccen Tsari (IPQC)

Busbar bolt cak cak ta amfani da calibrated juzu'an magudanar wuta (alama da tamper{0}} fenti bayyananne), tabbatattun rarrafe da share fage (a kowace IEC 61439).

Tabbatar da Waya

Maki 100%{1}}zuwa{2}} nuna ci gaban waya akan zanen da aka amince dashi.

Gwajin Karɓar Masana'antu (FAT) & Gwajin Na yau da kullun

Gwajin Juriya Mitar Ƙarfin Dielectric:Ana amfani da gwajin insulation mai ƙarfi tsakanin matakai, lokaci -zuwa{2}}tsaka-tsaki, da lokaci{3}}zuwa-}asa (yawanci 2.5kV AC na sakan 1/1minti).

Ma'aunin Juriya na Insulation:1000V DC megohmmeter juriya juriya dubawa kafin da bayan gwajin dielectric.

Binciken Injini & Kulle:Gwajin aikin da hannu na duk na'urorin zana watsewar da'ira, makullin ƙofa, na'urorin rufewa, da hanyoyin rufewa.

Gwajin Aikin Wutar Lantarki:Gwajin kuzarin da'irar sarrafawa, tafiye-tafiye/kusa da kwaikwayo don ACBs da MCCBs, tabbatar da aikin ba da sanda kariya, da duban nunin mitoci.

Takaddun Gwajin Karɓar Masana'antu (FAT):Cikakken fakitin rahoton gwaji da aka bayar tare da jigilar kaya, gami da takaddun takaddun kayan aiki.

Ayyukan Injiniya

Pre{0} Injiniyan Talla

Bita na SLD, ƙididdige girman ma'aunin bus, gajeriyar lissafin kewayawa na yanzu, da 2D/3D CAD ƙirar ƙirar (AutoCAD, SolidWorks, Revit BIM model).

Injiniya darajar (VE)

Shawarwari na inganta farashi ba tare da lalata ƙimar zafi ba, karya iya aiki, ko ƙa'idodin aminci.

Binciken Nesa na FAT

Bidiyo kai tsaye - Gwajin Karɓar Masana'anta (FAT) ga abokan cinikin ƙasashen waje ba su iya gudanar da ziyarar masana'anta ta -.

Kunshin Rubutun

An bayar da cikakkun takaddun bayanai, gami da littattafan O&M, kamar yadda -gina zane-zane, lissafin kayan (BOM), nau'in takaddun shaida, da rahotannin FAT.

Marufi, Ƙarfafawa & Fitarwa

Rufe Kariya

Fim ɗin shimfiɗar PE mai damshin VCI (Volatile Corrosion Inhibitor) nannade da nauyi{1}} fakitin na'urar bushewa da aka sanya a cikin kowane rukunin panel.

Crate Construction

Nauyi mai nauyi{0}, fumigation - akwatunan plywood kyauta (ƙaramin kauri na 18mm) an ƙarfafa shi tare da katako na katako na ciki da kwantar da kumfa EPE.

Base & Cibiyar Tsaron nauyi

Wuraren allo sun toshe kai tsaye zuwa manyan katako na katako ko sansanonin ƙarfe tare da ƙarfafa idanu masu ɗagawa don hawan crane. Cibiyar nauyi mai alama a sarari akan marufi na waje.

Hanyoyin jigilar kaya

FCL (Full Container Load) ta 40ft High Cube ko Buɗe Manyan kwantena masu nauyi - ratchet ratchet kunne{2}} ƙasa.

Takaddun shaida

An kera shi a ƙarƙashin Gudanar da ingancin ISO 9001, tare da takaddun shaida na CQC da sauran takaddun takaddun da ake samu bisa ga buƙatun aikin.

FAQ

Tambaya: Wadanne ma'auni ne ƙananan na'urorin ku na wutar lantarki da na'urorin kunnawa ke bi?

A: An ƙera kayan aikin mu kuma an gwada su daidai da IEC 61439 -1/2, IEC 60947, da UL 891 / UL 1558 jagororin ƙira. Muna ba da ƙwararrun ƙayyadaddun kewayawa, haɓakar zafin jiki, da ƙimar takaddun gwajin kariya.

Tambaya: Wadanne nau'ikan rabuwa na ciki za ku iya bayarwa?

A: Muna ba da kowane nau'i na rabuwa na ciki daga Form 1 har zuwa Form 4b (da IEC 61439). Form 4b yana tabbatar da cikakken keɓewa tsakanin mashaya bas, raka'a masu aiki (masu kashe kewayawa), da tashoshi na kebul masu fita don iyakar amincin ma'aikaci yayin kulawa.

Tambaya: Shin za mu iya ƙididdige samfuran da muka fi so don ACBs, MCCBs, da mita?

A: iya. Muna yawan gina allo mai canzawa ta amfani da abokin ciniki{1} takamaiman abubuwan da suka shafi Schneider Electric, ABB, Siemens, Eaton, ko LS Electric. Hakanan zamu iya samo abubuwan haɗin gwiwa dangane da kasafin kuɗin ku da jadawalin isar da ayyuka.

Tambaya: Kuna samar da rahotannin Gwajin Nau'in don ƙirar ku ta canza kayan aiki?

A: iya. Muna kula da takaddun shaida na Nau'in Gwaji da Takaddun Tabbatar da ƙira a cikin IEC 61439{2}}2, mai rufe iyakokin haɓakar zafin jiki, kaddarorin wutar lantarki, ƙarfin juriya na gajeriyar kewayawa, ingancin da'irori masu kariya, da nisan sharewa/creepage.

Tambaya: Shin za ku iya samar da fayilolin BIM na 3D ko STEP don ƙirar haɗin gwiwar ginin mu?

A: iya. Ƙungiyar aikin injiniyanmu tana ba da fayilolin STEP 3D, Revit BIM model, da 2D AutoCAD zane (tsayi, tsarin bene, zanen layi ɗaya{3}) yayin matakin ƙaddamar da aikin injiniya don haɗawa mara kyau cikin tsarin ginin ku.

Tambaya: Yaya ake gwada raka'a masu cirewa (drawout) yayin FAT?

A: Duk buckets na da'ira da za'a iya cirewa da raka'a MCC suna fuskantar gwaje-gwajen tarawa na inji 100% (Haɗe, Gwaji, Matsayin da ba a haɗa su), tabbatar da aikin rufewa, duban daidaitawar filogi na biyu, da gwajin kullewar lantarki yayin FAT.

A matsayin ɗaya daga cikin ƙwararrun ƙwararrun masana'anta da masu samar da wutar lantarki -arancin wutar lantarki a China, muna kuma goyan bayan sabis na musamman. Da fatan za a ji daɗin siyar da ƙananan rangwame -ƙarar wutar lantarki a hannun jari anan daga masana'anta. Ana samun samfuran inganci da ƙarancin farashi.
